Radiography and Planar Imaging

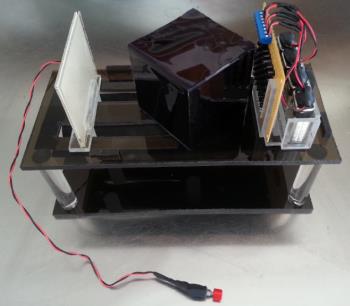

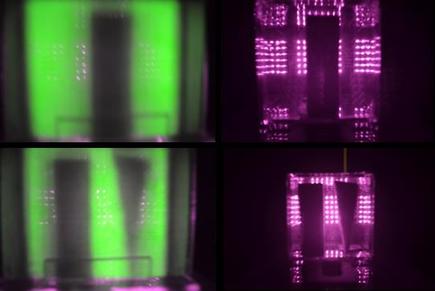

This activity uses a device to demonstrate the principles of radiography without the use of ionizing radiation. It utilizes infrared radiation and an up-converting phosphorescent screen to probe the contents of an enclosure which is opaque to visible light. The apparatus enables students to explore physics concepts used in radiography including properties of electromagnetic radiation, attenuation, image formation, differences between planar x-ray imaging and computed tomography, as well as digital and analog imaging.
Laboratory Guide
Radiography Lab Guide (pdf) (docx)
