Chemistry 331 - Winter 1996
Elements of Organic Chemistry I

Professor Carl C. Wamser

FINAL EXAM
March 19, 1996

1. (25 points) Write complete names for each of the following, including designation of stereochemistry if it is specifically shown.


a)

b)

c)

d)

e)

2. (25 points) Write accurate structures for each of the following:

a) a Newman diagram of the most stable conformation of 2-phenylethanol

b) the transition state for SN2 reaction of methyl iodide with hydroxide ion

c) meso-2,3-butanediol

d) lithium isopropoxide

e) (E)-3,5-dimethyl-3-heptene

3. (15 points) Draw and name all the isomers that have the molecular formula C4H10O.
Just one isomer is chiral. Draw and identify both the R and S enantiomers.

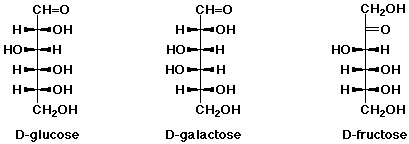

4. (10 points) The structure of several common sugars are shown below. All have the molecular formula C6H12O6.



Identify each stereocenter on the three compounds above with asterisks (*).

Identify the relationship between each pair of compounds:
(either constitutional isomers, diastereomers, enantiomers, or other)


The enantiomer of D-glucose (L-glucose) does not occur naturally.
Write its structure.

5. (10 points) Explain why fats are typically water-insoluble, while sugars are typically water-soluble. See the previous page for the structure of typical sugars. A typical fat has the structure shown below.

6. (40 points) Complete each reaction by adding the missing part: either the major product or the necessary reagents and conditions.

Also indicate the reaction type for every reaction:
(either addition, elimination, substitution, oxidation, reduction, acid/base, or other)





















7. (15 points) The general structure of a steroid is shown below, in two different views.

Consider the B ring as a pair of substituents on the A ring. Are they cis or trans?


Consider the A ring as a pair of substituents on the B ring. Are they cis or trans?
(Hint: you should get the same answer for both of the above questions)

Is the B - C ring connection cis or trans?


Is the C - D ring connection cis or trans?


A typical steroid has what are often called "angular" methyls: axial methyl groups at positions C-10 and C-13. Draw them on the chair structures at the appropriate places.

Cholesterol also has an equatorial alcohol group at position 3. Draw it on the chair structure at the appropriate place, and indicate whether the stereochemistry is R or S.


8. (10 points) Write a complete mechanism for the E1 dehydration of tert-butyl alcohol using aqueous sulfuric acid.

9. (10 points) Write a complete mechanism for the acid-catalyzed ring opening of ethylene oxide (epoxyethane) in aqueous sulfuric acid.

10. (20 points) Write a complete mechanism for the bromination of benzene using FeBr3 as catalyst.
Include a potential energy diagram that identifies the steps in the reaction.
Write all resonance forms for the intermediate involved.
Illustrate why FeBr3 is considered a catalyst for this reaction.

11. (20 points) In designing a synthesis, it is often crucial to do things in the right order. In the two examples below, describe the strategy necessary and show the reactions that would be used for a successful synthesis.

a) In the synthesis of p-nitrotoluene from benzene, explain how you would choose which of the two substituents should be added first.


b) In the synthesis of ethyl isopropyl ether, explain how you would select which component should be the nucleophile and which should be the alkyl halide for the SN2 reaction.
